Spring4Shell 漏洞复现及分析
背景
2022 年 3 月 31 日,Spring Framework for Java 中的漏洞被公开披露,现已被给予编号 CVE-2022-22965。
Spring 框架是 Java 中使用最广泛的轻量级开源框架。在 Java Development Kit (JDK) 9.0 或更高版本中,远程攻击者可以通过框架的参数绑定特性获取 AccessLogValve 对象,并使用恶意字段值触发管道机制,并在某些条件下写入任意路径的文件。该漏洞现已被修补。
spring 官方公告: https://spring.io/blog/2022/03/31/spring-framework-rce-early-announcement
前置知识
- JavaBean
- JavaBean 内省
- Spring CachedIntrospectionResults
- spring 参数绑定
JavaBean
JavaBean 本质上就是一个 Java 类,但是其是一种特殊的、可重用的类。
其是符合一定规范编写的 Java 类,不是一种技术,而是一种规范。大家针对这种规范,总结了很多开发技巧、工具函数。符合这种规范的类,可以被重用。
编写 JavaBean 必须满足以下几点要求:
- 这个类必须具有一个公共的 (public) 无参构造函数;
- 所有属性私有化 (private);
- 私有化的属性必须通过 public 类型的方法 (getter 和 setter) 暴露给其他程序,并且方法的命名也必须遵循一定的命名规范。
- 这个类应是可序列化的。(比如可以实现 Serializable 接口,用于实现 bean 的持久性)
package player;
public class PersonBean implements java.io.Serializable {
// name 属性
private String name = null;
// deceased 属性
private boolean deceased = false;
// 无参构造函数
public PersonBean() {
}
//name 的 getter 方法
public String getName() {
return name;
}
//name 的 setter 方法
public void setName(final String value) {
name = value;
}
// deceased 的 getter 方法
// boolean 类型的特殊 getter
public boolean isDeceased() {
return deceased;
}
// deceased 的 setter 方法
public void setDeceased(final boolean value) {
deceased = value;
}
}
JavaBean 内省
基本概念
内省 (IntroSpector): 计算机程序在运行时 (Runtime) 检查对象 (Object) 类型的一种能力,通常也可以称作运行时类型检查
Java 官方对 JavaBean 内省的定义
At runtime and in the builder environment we need to be able to figure out which properties, events, and methods a Java Bean supports. We call this process introspection.
从 Java Bean 的角度来看,这里的对象就是 Bean 对象,主要关注点是属性、方法和事件等,也就是说在运行时可以获取相应的信息进行一些处理,这就是 JavaBean 的内省机制。
上述描述和反射很接近,反射是获取一个对象所属的类,并通过 Class 调用类内的属性和方法,和内省机制很接近。
和反射的区别
首先明确,内省其实就是对反射的封装
By default we will use a low level reflection mechanism to study the methods supported by a target bean and then apply simple design patterns to deduce from those methods what properties, events, and public methods are supported.
- 反射:在运行状态把 Java 类中的各种成分映射成相应的 Java 类 (Method, Class 等),可以动态的获取所有的属性以及动态调用任意一个方法,强调的是运行状态
- 内省:Java 语言针对 Bean 类属性、事件的一种缺省处理方法,并且内省机制是通过反射来实现的。返回的 BeanInfo 用来暴露一个 Bean 的属性、方法和事件,以后我们就可以操纵该 JavaBean 的属性
源码分析详解
PropertyDescriptor
属性描述符,该类实现了对 JavaBean 的某一属性的所有描述 主要方法包括:
- getPropertyType(),获得属性的 Class 对象;
- getReadMethod(),获得用于读取属性值的方法;
- getWriteMethod(),获得用于写入属性值的方法;
- hashCode(),获取对象的哈希值;
- setReadMethod(Method readMethod),设置用于读取属性值的方法;
- setWriteMethod(Method writeMethod),设置用于写入属性值的方法。
public class User {
private String name;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
@Override
public String toString() {
return "User{" +
"name='" + name + '\'' +
'}';
}
}
public static void main (String[] args) throws Exception {
// 创建并输出 User 对象的值
User user = new User();
System.out.println( user.toString );
// 创建一个 User.name 的属性描述符
PropertyDescriptor propertyDescriptor = new PropertyDescriptor( "name", User.class );
// 获得并调用 User.name 的读方法,也就是 getter --> User.getname()
Method readMethod = propertyDescriptor.getReadMethod();
System.out.println( readMethod.invoke( user ) );
// 获得并调用 User.name 的写方法,也就是 setter --> User.setname()
Method writeMethod = propertyDescriptor.getWriteMethod();
writeMethod.invoke( user, "hello" );
System.out.println( user.toString );
}
输出结果:
User{name='null', aName='null'}
null
User{name='hello', aName='null'}
通过上述的例子,可以看出 PropertyDescriptor, 就是对属性反射的一种封装,方便操作对应 JavaBean 的属性,使用 PropertyDescriptor 其实就是利用反射对其 get 和 set 方法的操作而已。
BeanInfo
BeanInfo 是一个接口,其常用的实现是 GenericBeanInfo
class GenericBeanInfo extends SimpleBeanInfo {
// JavaBean 的描述符,持有类 Class 对象的引用
private BeanDescriptor beanDescriptor;
// JavaBean 的所有属性描述符
private PropertyDescriptor[] properties;
// JavaBean 的所有方法描述符
private MethodDescriptor[] methods;
...
}
BeanInfo 就是对一个 JavaBean 类所有的属性、方法等反射操作封装后的集合体。
IntroSpector
介绍完了内省所需要的所有前置知识,最后说回最开始的内省机制。
Java 中提供了一套 API 用来访问某个属性的 getter/setter 方法。
- Introspector, 提供了
getBeanInfo
方法,可以拿到一个 JavaBean 的所有信息 - BeanInfo, 提供了
getPropertyDescriptors
方法和getMethodDescriptors
方法可以拿到 javaBean 的字段信息列表和 getter 和 setter 方法信息列表 - PropertyDescriptors 可以根据字段直接获得该字段的 getter 和 setter 方法
- MethodDescriptors 可以获得方法的元信息,比如方法名,参数个数,参数字段类型等
通过 Introspector 获取一个类的 BeanInfo, 通过 BeanInfo 能够获取属性描述器、方法描述器、类 Class 对象,利用获取到的属性描述器,我们能够往一个该类实例中放入数据
public static void main(String[] args) throws Exception {
BeanInfo beanInfo = Introspector.getBeanInfo( Customer.class );
PropertyDescriptor[] propertyDescriptors = beanInfo.getPropertyDescriptors();
MethodDescriptor[] methodDescriptors = beanInfo.getMethodDescriptors();
BeanDescriptor beanDescriptor = beanInfo.getBeanDescriptor();
}
Spring CachedIntrospectionResults
public final class CachedIntrospectionResults {
/**
* Map keyed by Class containing CachedIntrospectionResults, strongly held.
* This variant is being used for cache-safe bean classes.
*/
static final ConcurrentMap<Class<?>, CachedIntrospectionResults> strongClassCache =
new ConcurrentHashMap<>(64);
/**
* Map keyed by Class containing CachedIntrospectionResults, softly held.
* This variant is being used for non-cache-safe bean classes.
*/
static final ConcurrentMap<Class<?>, CachedIntrospectionResults> softClassCache =
new ConcurrentReferenceHashMap<>(64);
static CachedIntrospectionResults forClass(Class<?> beanClass) throws BeansException {
// 尝试在 strongClassCache 中获得
CachedIntrospectionResults results = strongClassCache.get(beanClass);
if (results != null) {
return results;
}
// 获取不到的话在 softClassCache 中获取
results = softClassCache.get(beanClass);
if (results != null) {
return results;
}
// 如果都没有获得 创建对象进行获取
results = new CachedIntrospectionResults(beanClass);
ConcurrentMap<Class<?>, CachedIntrospectionResults> classCacheToUse;
if (ClassUtils.isCacheSafe(beanClass, CachedIntrospectionResults.class.getClassLoader()) ||
isClassLoaderAccepted(beanClass.getClassLoader())) {
classCacheToUse = strongClassCache;
}
else {
if (logger.isDebugEnabled()) {
logger.debug("Not strongly caching class [" + beanClass.getName() + "] because it is not cache-safe");
}
classCacheToUse = softClassCache;
}
// 缓存获得的结果
CachedIntrospectionResults existing = classCacheToUse.putIfAbsent(beanClass, results);
return (existing != null ? existing : results);
}
}
CachedIntrospectionResults
这个类是 Spring 提供的对类的内省机制使用的工具类,不同于Introspector
之处在于,该类提供类内省机制时的数据缓存,即内省获得的PropertyDescriptor
这些数据进行了缓存,之后通过全局变量 Map 提供了对内省机制获得的BeanInfo
信息的缓存,从而可以方便通过 static 方法获取对应类的内省信息。
spring 参数绑定
在 springMVC 中,接收页面提交的数据是通过方法形参来接收的。从客户端请求的 key/value
数据,经过参数绑定,将 key/value
数据绑定到 controller
方法的形参上,然后就可以在 controller
中使用该参数了。
eg:
JavaBean
package top.dre4merp;
public class User {
private String name;
private Integer age;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Integer getAge() {
return age;
}
public void setAge(Integer age) {
this.age = age;
}
@Override
public String toString() {
return "User{" +
"name='" + name + '\'' +
", age=" + age +
'}';
}
}
Controller
package top.dre4merp;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
@Controller
public class TestController {
@RequestMapping(path = "/test")
@ResponseBody
public String Test(User u){
return u.toString();
}
}

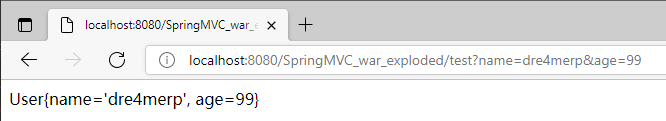

结果
漏洞分析
漏洞点分析
Spring4Shell 的漏洞点就在对参数进行赋值的过程中

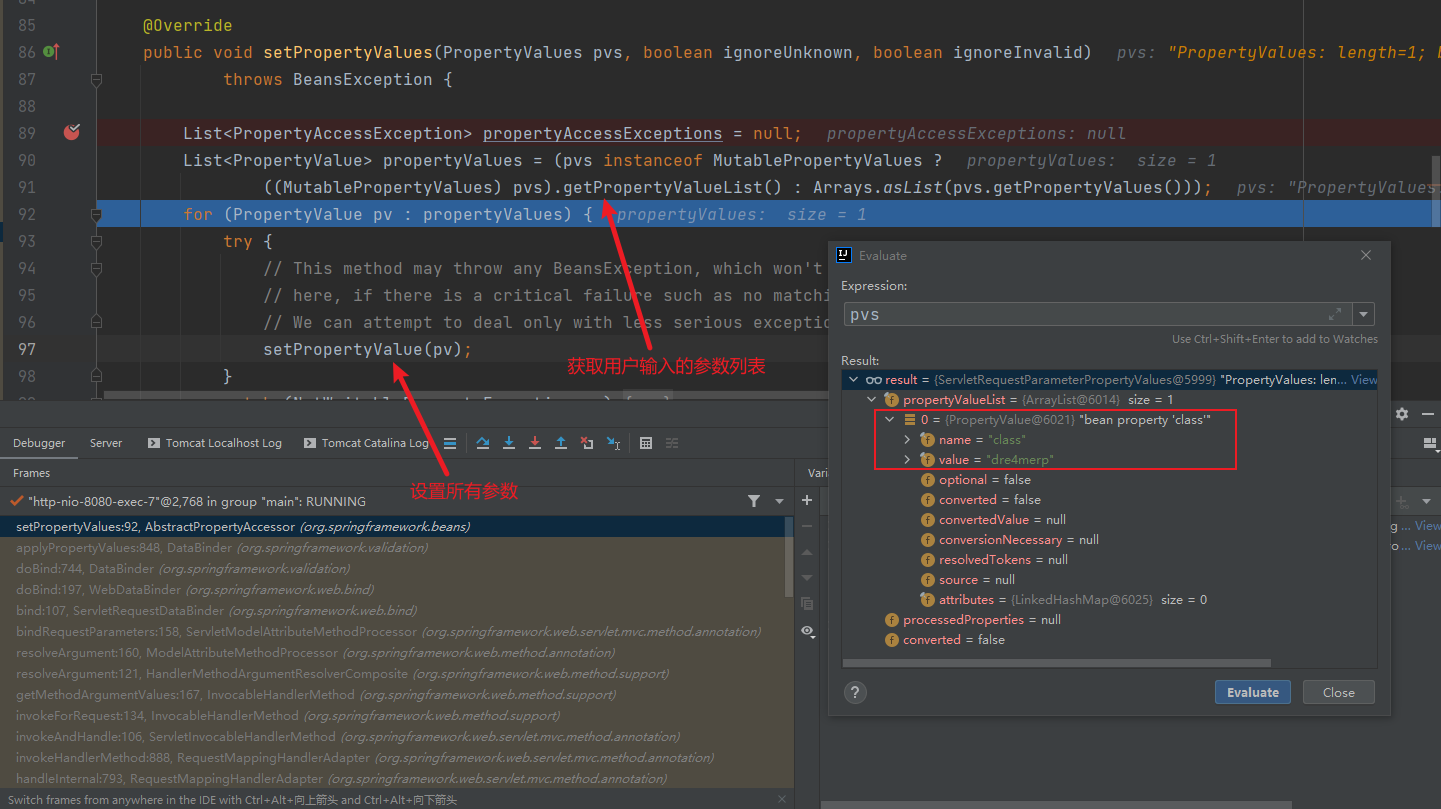

在org.springframework.beans.AbstractPropertyAccessor#setPropertyValues(org.springframework.beans.PropertyValues, boolean, boolean)
这个函数中获取用户输入的参数并对 bean 对象进行赋值

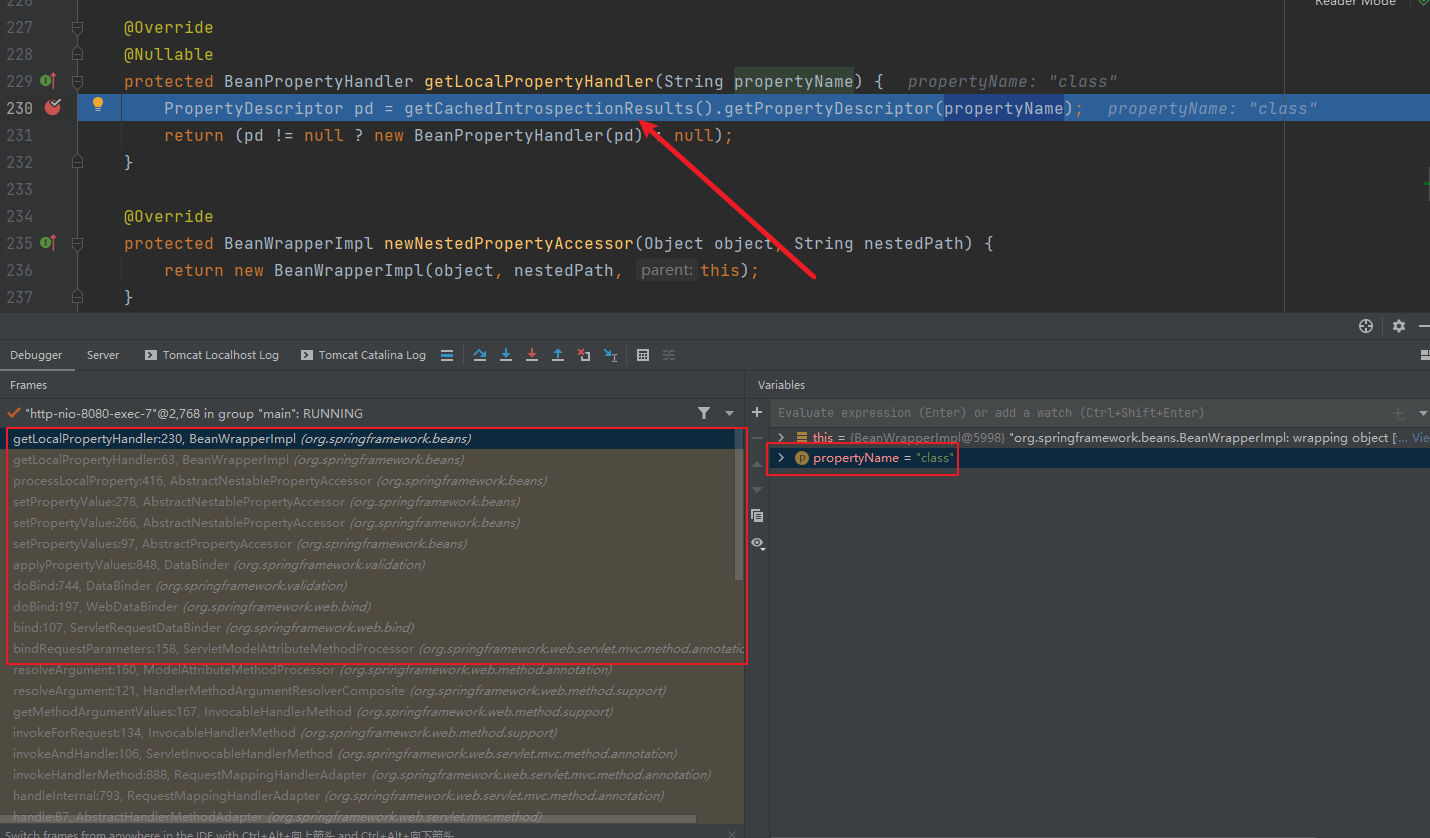

在赋值的过程中需要获取到对应的参数对象的参数描述符,其中的getCachedIntrospectionResults().getPropertyDescriptor(propertyName)
函数便是通过名字在前文提到的缓存中获取参数描述符

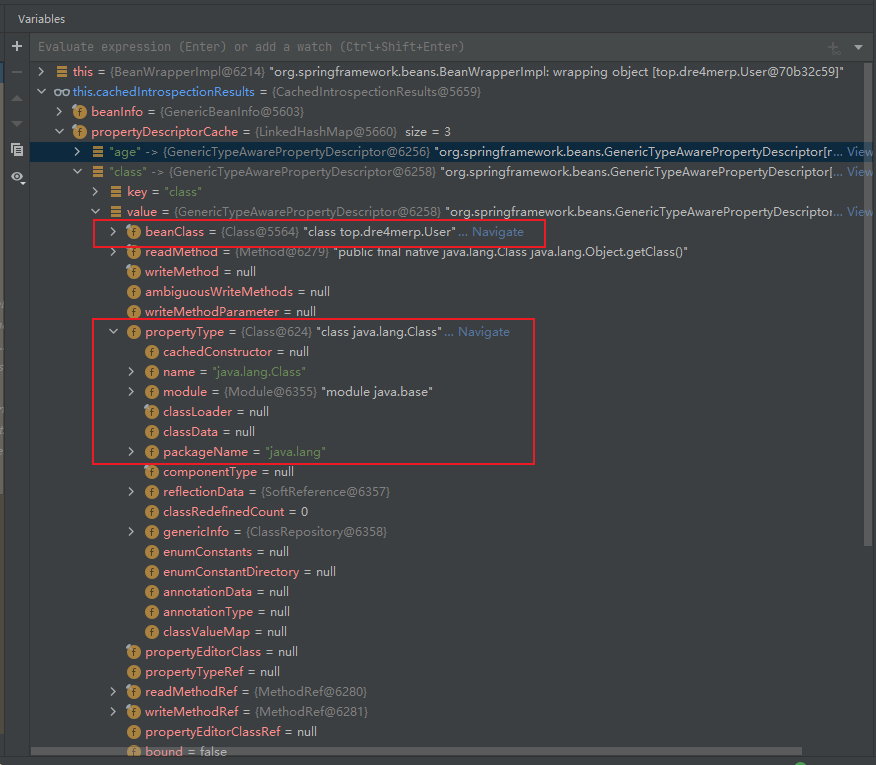

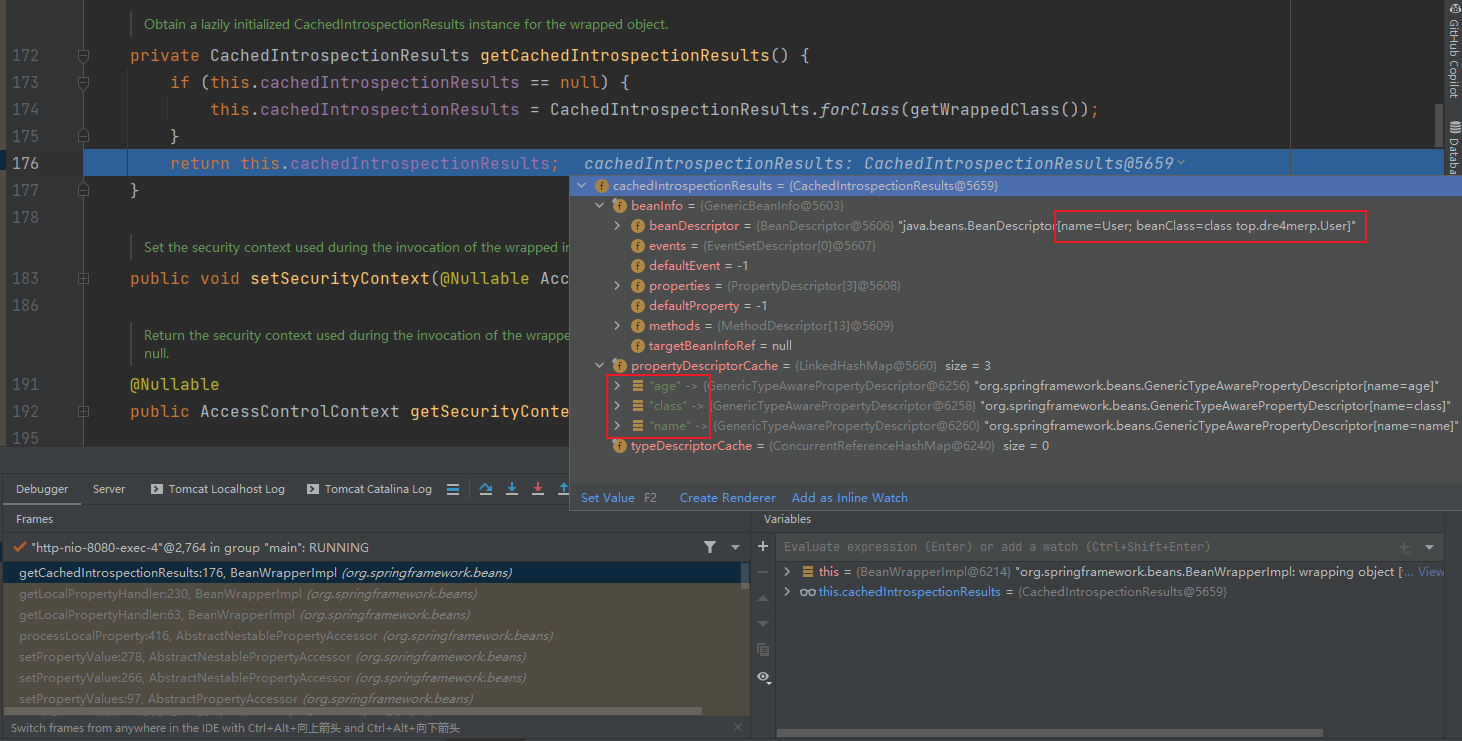

如上图,取到了缓存的top.dre4merp.User
的属性描述符,其中包含了三个属性,其中的name
和age
没有任何问题,但是其中的class
并不是我们设置的
查看一下class
的具体属性值,可以看出其是一个指向top.dre4merp.User
的java.lang.Class
, 通过这个属性描述符可以进行反射调用。那这个class
是从哪里来的呢,这就需要我们回到第一次缓存的时候查看。

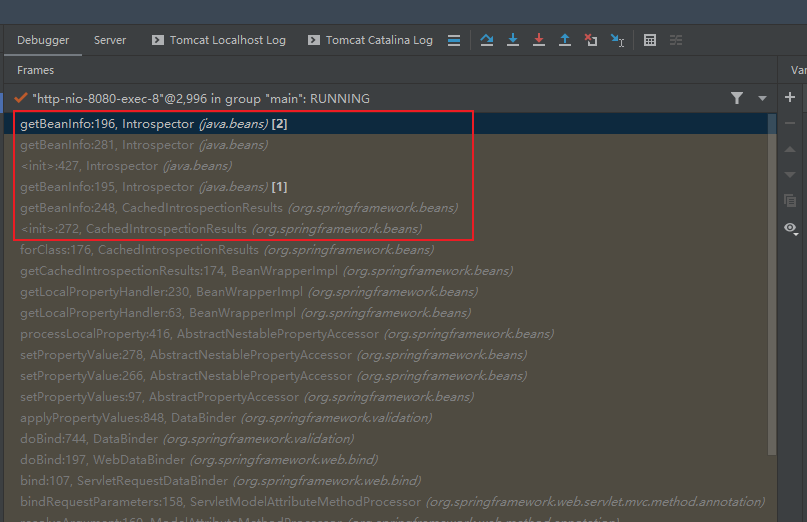

下图中,红框以下的部分之前已经分析过,包括forClass
。红框中的部分就是 spring 调用 java 本身的内省,也就是IntroSpector
获得 BeanInfo

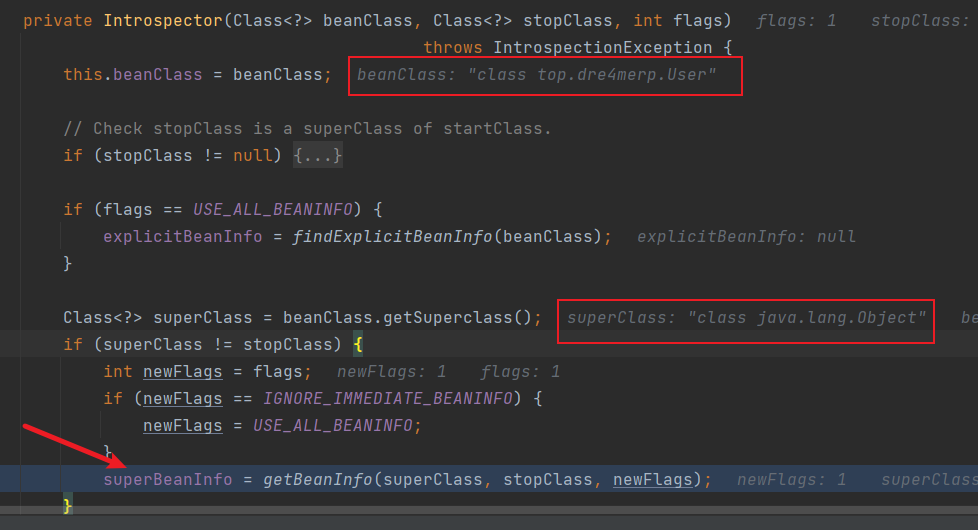

上图中出现了递归调用是因为IntroSpector
会获取父类的 BeanInfo

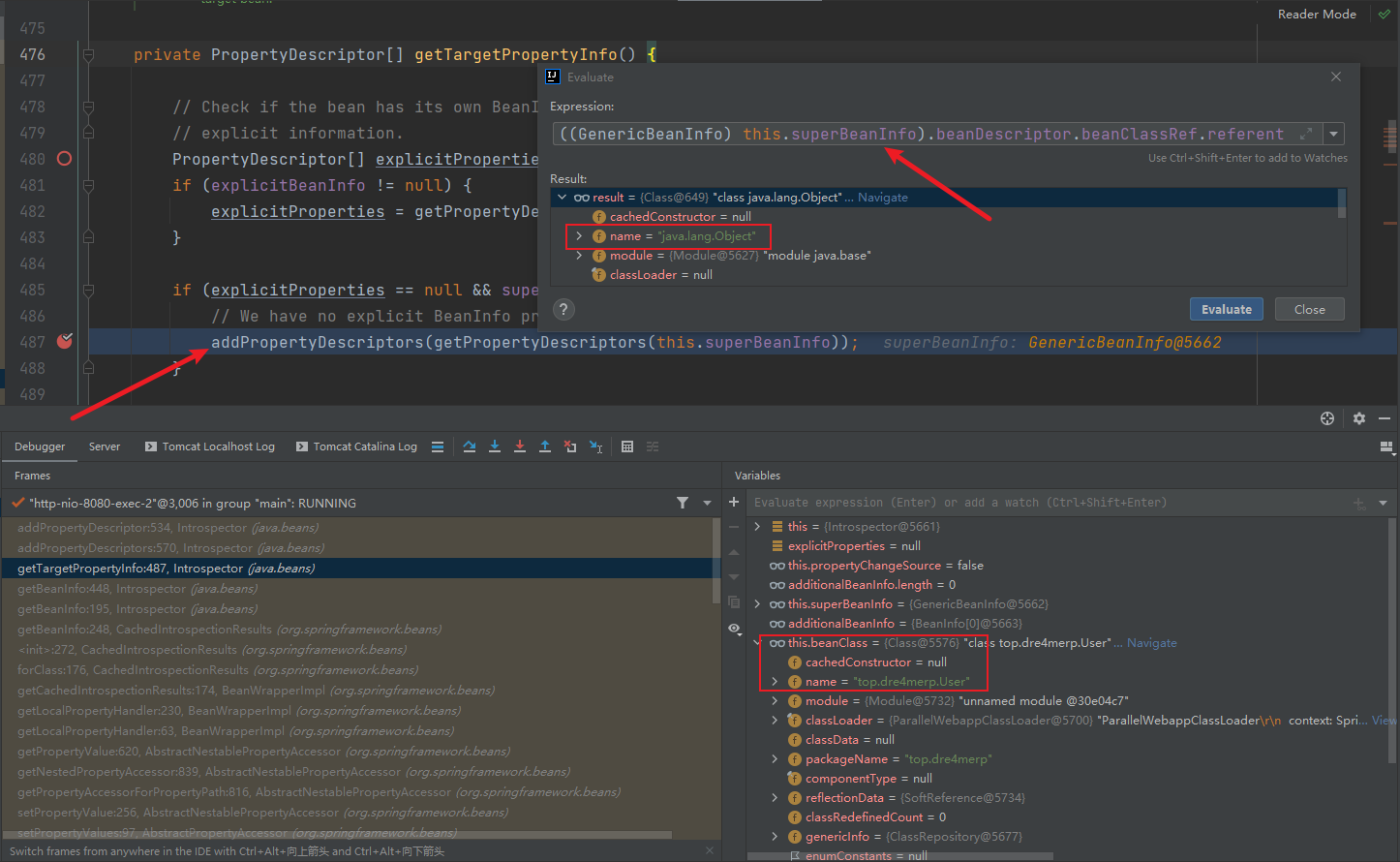

之后在获得子类的 BeanInfo 时,会先将父类的PropertyDescriptor
添加到子类的PropertyDescriptors
中,所以理论上所有继承自Object
的类都会获得class
属性
利用分析
利用这个漏洞进行 RCE 的本质其实是对 tomcat 的配置进行覆盖修改,修改 tomcat 的日志位置到根目录,修改日志的后缀为 jsp,即上传了一个 shell.jsp。
以下为 POC 中关键的信息:
- pattern 为生成的 shell.jsp 中的内容
- suffix 为日志文件后缀名
- directory 为日志文件 (jsp) 放置的路径
- prefix 为日志文件前缀名
- fileDateFormat 为日志文件的输出格式
class.module.classLoader.resources.context.parent.pipeline.first.pattern=
&class.module.classLoader.resources.context.parent.pipeline.first.suffix=.jsp
&class.module.classLoader.resources.context.parent.pipeline.first.directory=webapps/ROOT
&class.module.classLoader.resources.context.parent.pipeline.first.prefix=shell
&class.module.classLoader.resources.context.parent.pipeline.first.fileDateFormat=

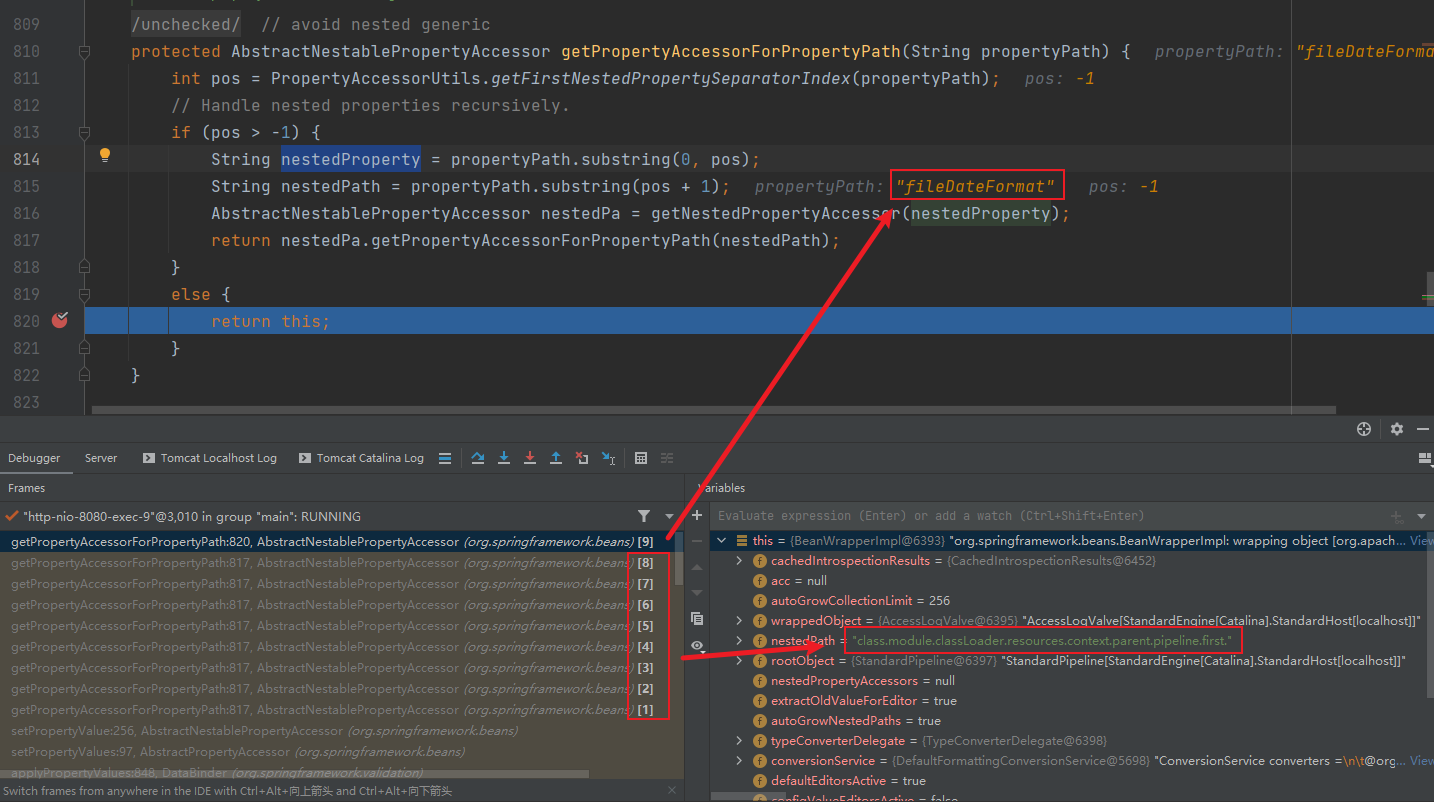

在org.springframework.beans#getPropertyAccessorForPropertyPath(String)
中递归寻找对应的属性访问器

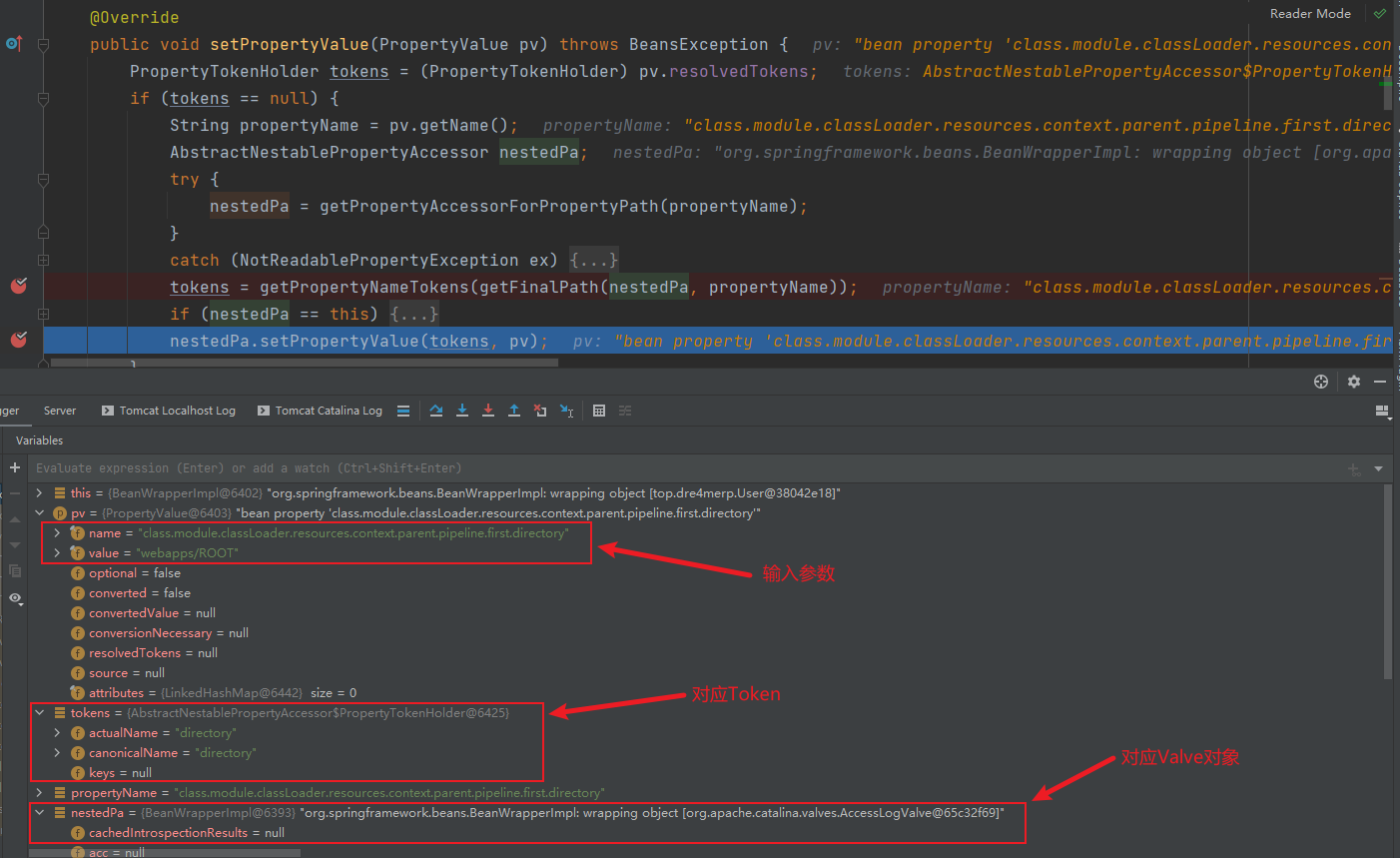

最后在org.springframework.beans#setPropertyValue(PropertyValue)
中设置由用户控制的值
利用条件
- 中间件为 Tomcat
- 目前传出的 POC 中,均为利用 Tomcat 的日志进行 shell 的上传
- 打包为 WAR 并部署在独立的 Tomcat 实例中;使用嵌入式 Servlet 容器或 Spring Boot 部署不受影响
- Tomcat 有 spring-webmvc 或 spring-webflux 依赖
- jdk 版本 >= 9

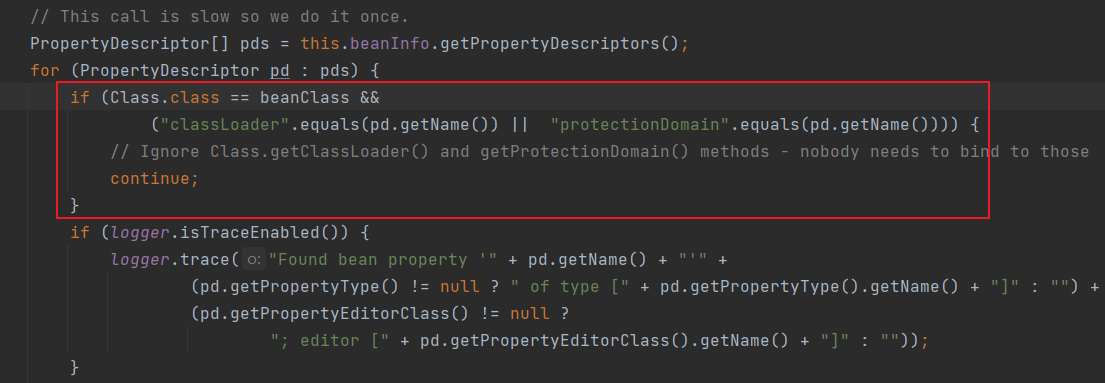

- 如下图,当初 Spring 修复了 CVE-2010-1622,修复方式是拦截
Class.getClassLoader
的访问。但是 Java9 新增了可以通过Class.getModule
方法。通过getModule
的结果可以调用getClassloader
的方式继续访问更多对象的属性。
- 如下图,当初 Spring 修复了 CVE-2010-1622,修复方式是拦截
漏洞防护
官方修复建议
更新至最新版本。
临时防护方案
在WAF等网络防护设备上,根据实际部署业务的流量情况,实现对"class.*",“Class.*”,".class.*","*.Class.*“等字符串的规则过滤,并在部署过滤规则后,对业务运行情况进行测试,避免产生额外影响
